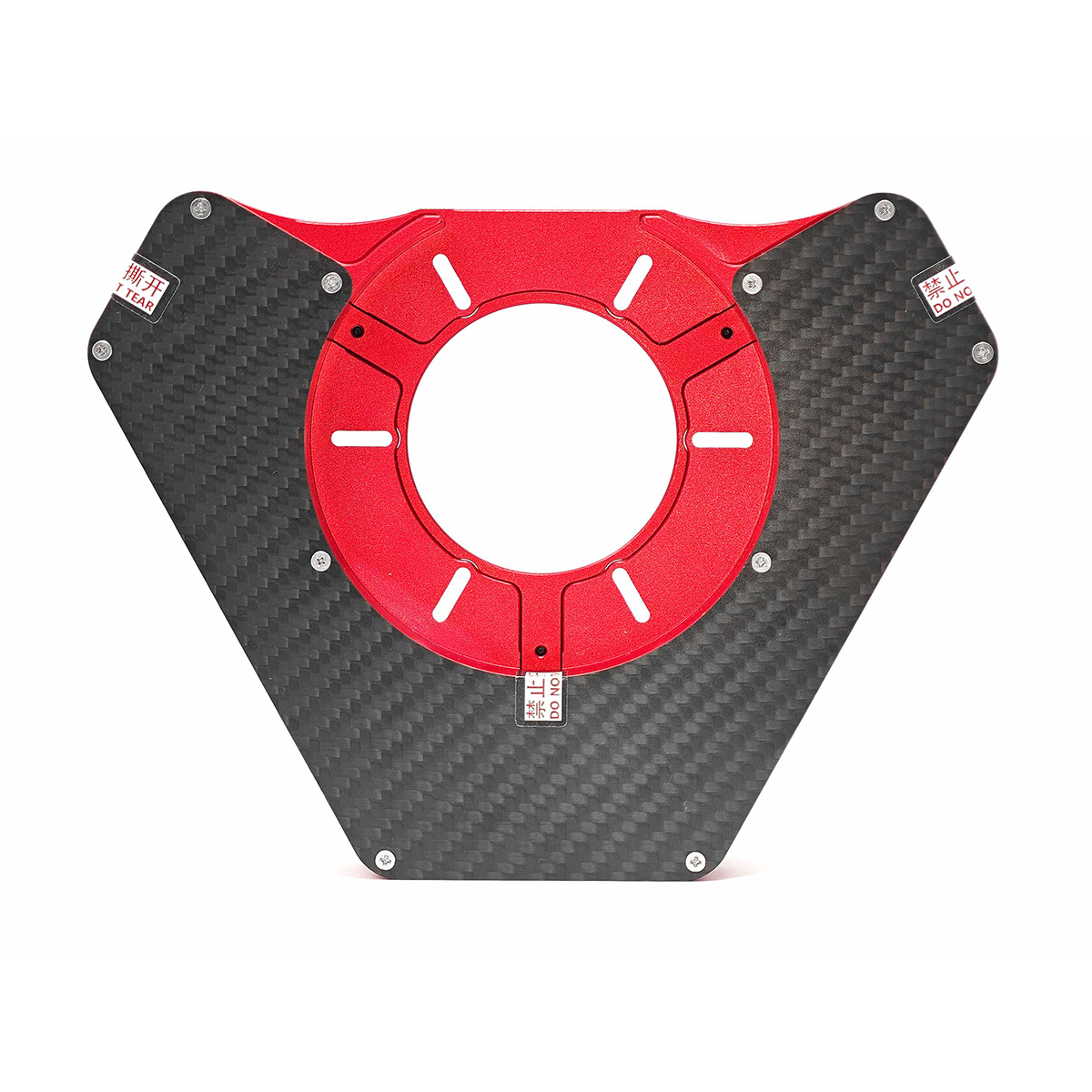

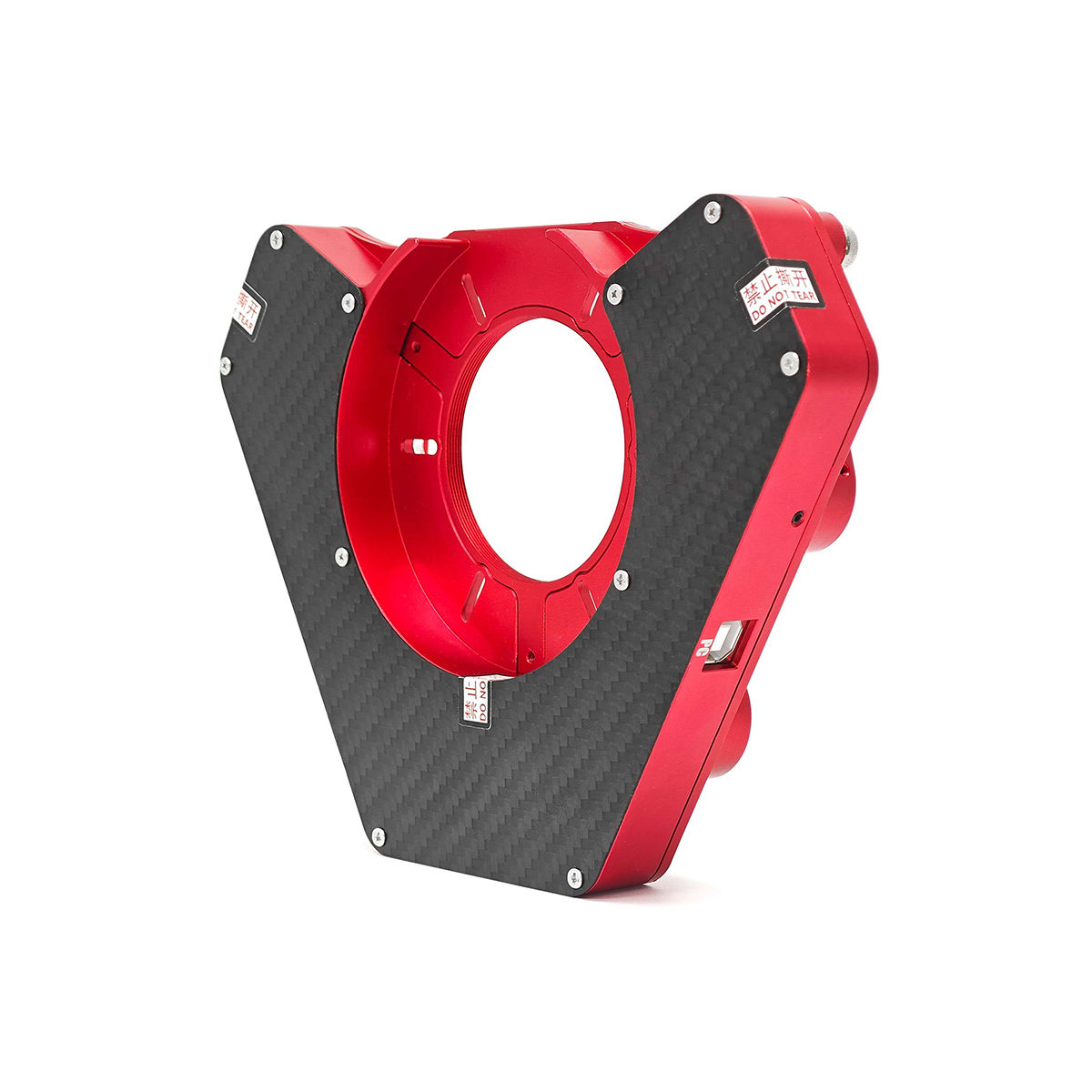

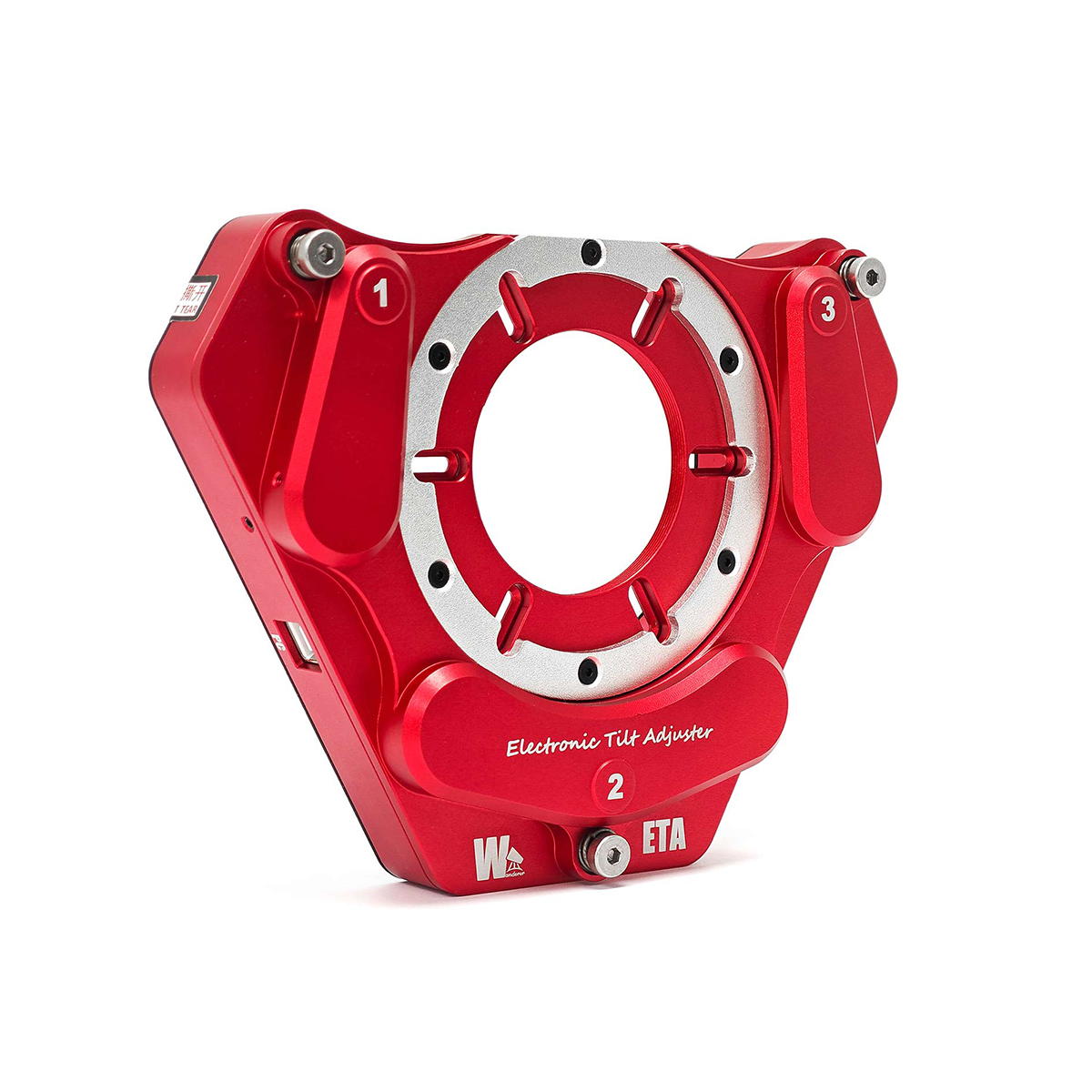

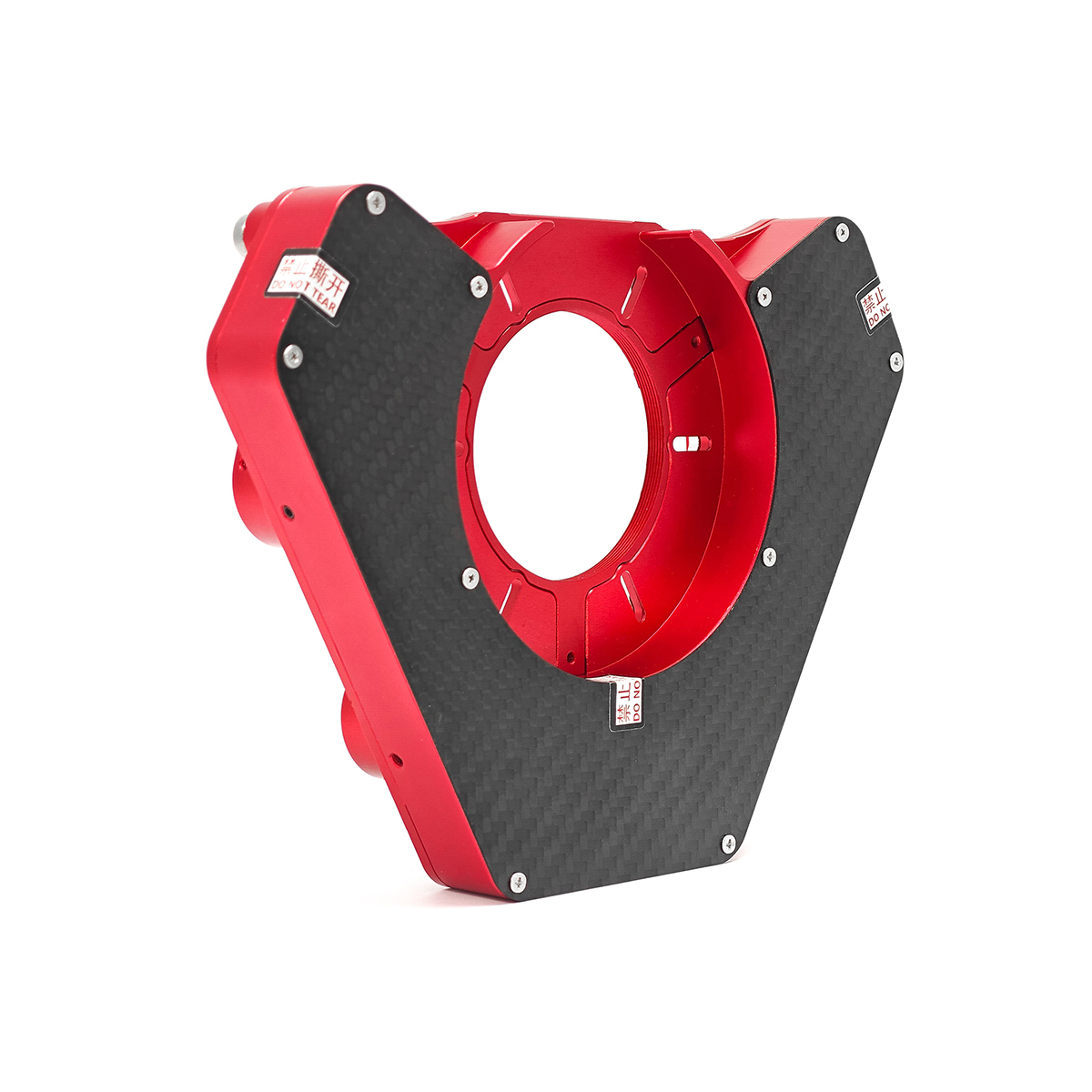

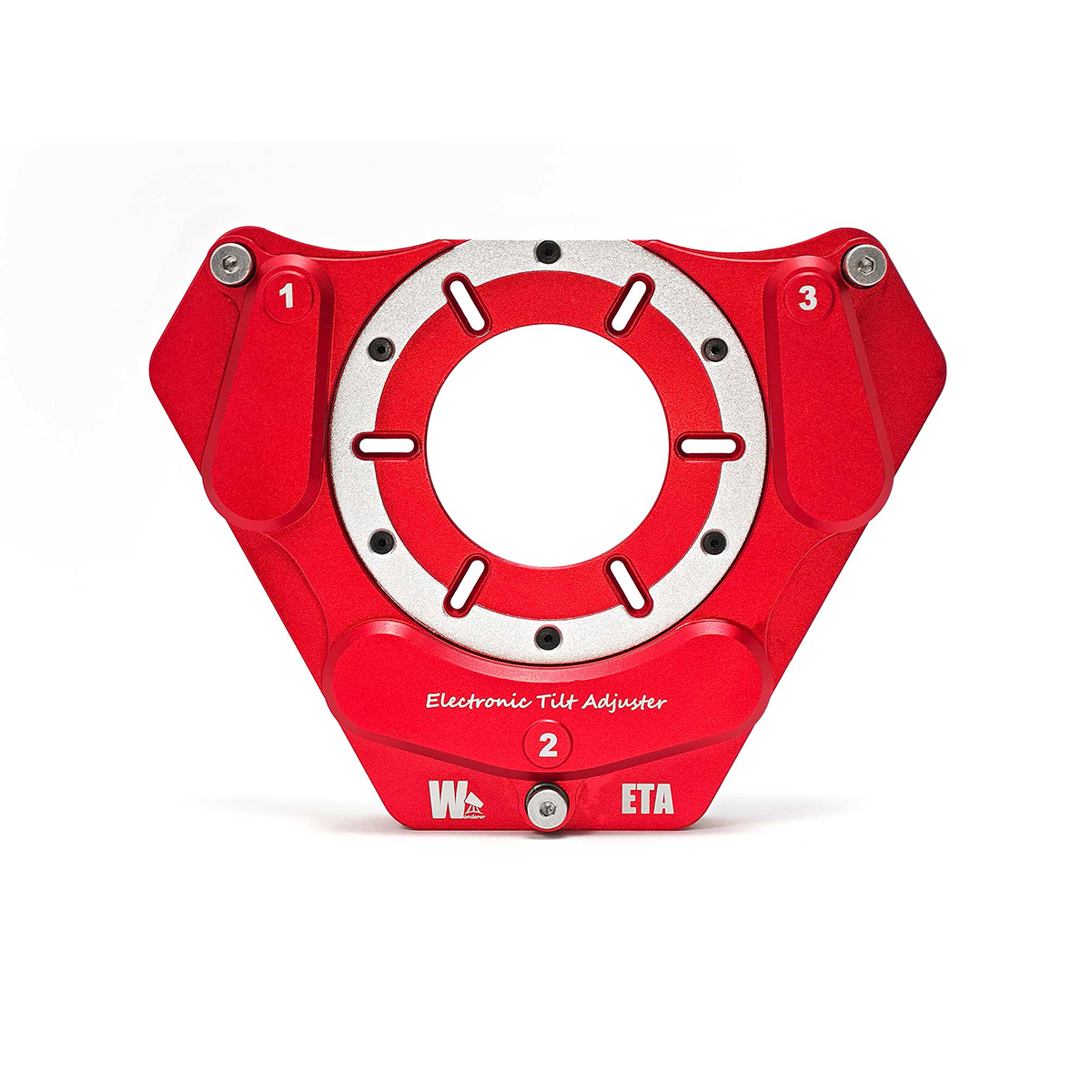

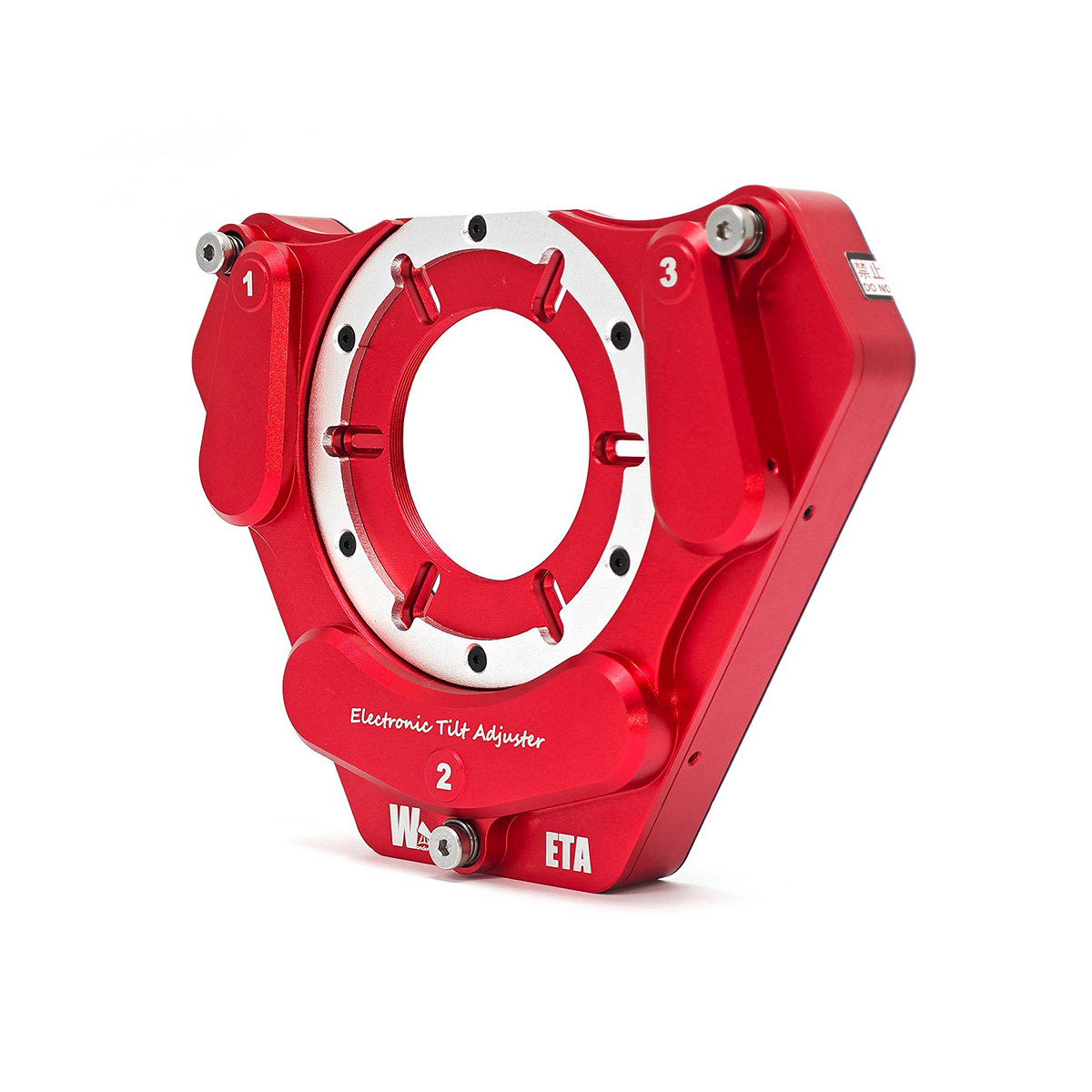

Wanderer Electronic Tilt Adjuster M54 - # WETA-M54

Product Details

Wanderer ETA M54 (Electronic Tilt Adjuster) is an innovative electronic tilt and back focus adjuster that allows users to precisely, quickly, and remotely adjust the camera's tilt and back focus.

The Wanderer ETA features three independent adjustment motors and three high-precision encoders, offering an adjustment range of 1.2mm with a motor resolution of 0.3 micron per step and a positioning accuracy of up to 2 microns. Compared to traditional manual tilters, this achieves a precision several orders of magnitude higher, fully meeting the demanding tilt and back focus adjustment requirements of fast focal ratio systems and large-format cameras.

The Wanderer ETA can be directly mounted in front of an OAG or camera using screws and, in most cases, still maintain a 55mm back focus. For detailed installation instructions and device compatibility, please refer to the user manual.

The Wanderer ETA can also be connected to OAG/filter wheel/camera with M54 threads, you need to purchase our Camera Side M54 Female Adapter for Wanderer Electronic Tilt Adjuster M54 (WETA54-M54F.Sold separately)

Specification:

Telescope Side Connection: M54 female threads

Camera Side Connection: M2.5/M3 screws (M54 female adapter optional, WETA54-M54F)

Load Capacity: ≤3kg

Motor: 0.3 microns/step

Positioning accuracy: 2 microns

Travel: 1.2mm

Aperture: M54

Back Focus for Calculation: 5mm (when connected to OAG/camera with screws)

Weight: 1.03 lbs (470 g)

Ports: USB Type-B

Power: USB (5V 0.5A)

Operating Temperature: −25°C-50°C (−13°F-122°F)

Software Supported: WandererEmpire

Product number: WETA-M54
