ZWO ASI462MM 2.1 MP CMOS Monochrome Astronomy Camera with DDR3 Memory # ASI462MM

DescriptionReport Item

All the goods in the store are in stock, you can buy directly！！

STARVIS Technology

The STARVIS Technology brings better imaging performance to the camera in low light conditions.

DDR3 Memory

The camera is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 memory to ensure stable and secure data transmission. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.

Note that the DDR3 memory is NOT available in the first 200 early-bird cameras. It’s only available in the official version.

We do not provide DDR3 memory version replacement or upgrade for the early-bird batch.

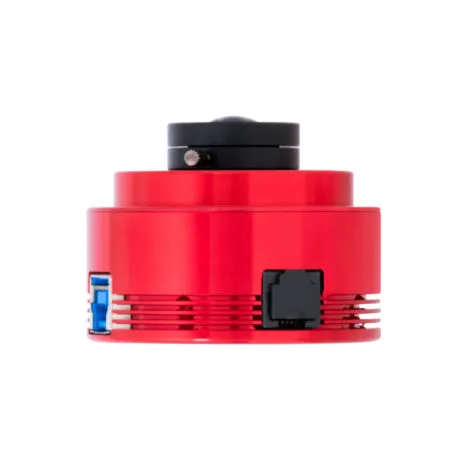

USB 3.0 & ST4 Port

USB 3.0 Port: Provides 5Gb bandwidth to let the camera run at 136.1fps (10bit, high speed mode) or 63.9fps (12bit, normal mode) at full resolution (2Mega).

ST4 Port: Can be used to connect with auto guide port of mount for guiding.

ASI462MM vs ASI290MM

As the upgraded version of ASI290MM, ASI462MM has achieved great improvements regarding QE and readout noise.

Camera Performance

Low readout noise & high QE value

ASI462MM is integrated with HCG mode, which can effectively reduce readout noise at high gain and allow the camera to maintain the same high dynamic range as it does at low gain. At gain 80, the HCG mode is automatically turned on; the dynamic range reaches a level close to 12stops, and the readout noise can be as low as 0.47e.

QE value and readout noise are some of the most important specifications for astronomical cameras. High QE and low readout noise are essential to improve image SNR(Signal to Noise Ratio).

The QE peak value of ASI462MM is around 89% (Relative response).

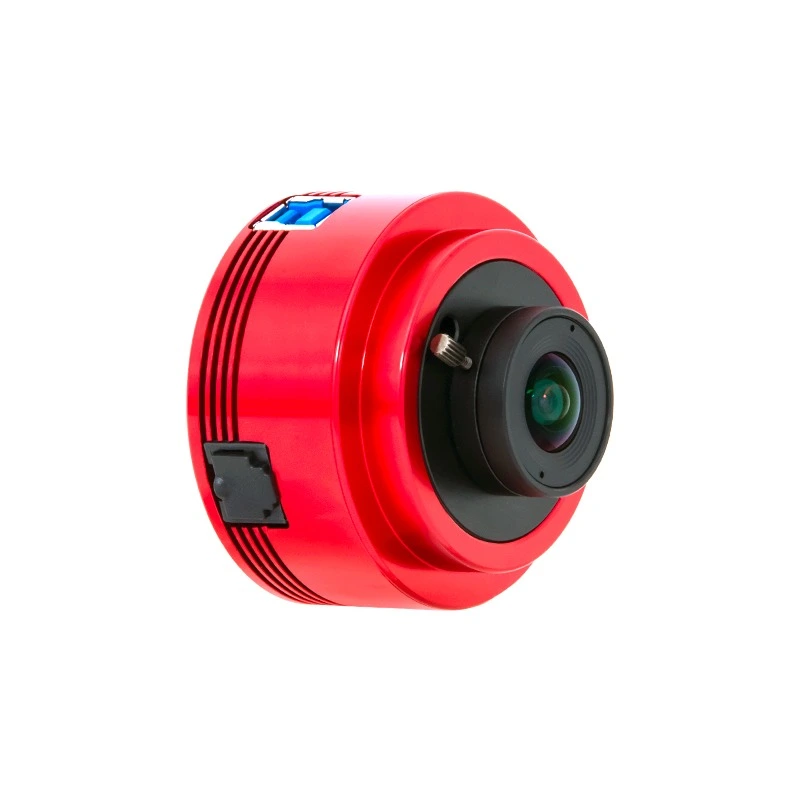

AR Protective Window

ASI462MM features the AR(Anti-Reflective) coating on its protective glass. Diameter of the window: 21mm. Thickness: 1.1mm.

Connection Methods

Structural Dimension Diagram

What’s in the Box?

Tax
The price list on our website is USD without tax
Please note that buyers are liable to pay tax involved, such as Import tax, VAT , customs handling fee, etc. The additional fees may be collected at time of delivery by courier.

Warranty and Return Policy
We provide 2-year warranty for our products, we will offer the repair service for free within warranty period. After the warranty period, we will continue to provide repair support and service on a charged basis. We do not provide any replacement unless ZWO confirmed the product is DOA (Dead On Arrival).
This warranty does not apply to damage that occurred as a result of abuse or misuse, or caused by a fall or any other transportation failures after purchase.
Customer must pay for shipping when shipping the camera back for repair or replacement. If we confirm you can get a replacement, goods must be returned with all accessories, instructions, etc and must be suitably packed.
If you get a faulty camera, Please contact us as soon as possible. Please describe the problem in detail and we will do our best to help you solve the problem. Most instances perceived problems are simply bad driver install or software configuration.

Drivers and Softwares:

Our website has newest camera drivers and many DSO and Planetary capture softwares. Please make sure the newest driver and software has been installed before you start shooting.
